PiVSMP
PiVSMP is the short name of a python project I built called Pi Very Slow Movie Player. There already existed such a concept of using an e-ink display attached to a raspberry pi to display frames from a movie, but I wanted to create a simple to use tool similar to PiVPN to replicate the functionality.
Unfortunately my e-ink display cable snapped and so I am unable to use it anymore, but the code is still available.
Code
The project's code is available on my GitHub in the PiVSMP repository. Written in Python, the project is a command line interface that sits on top of the waveshare driver, which powers the e-ink display.
Installation
By following the PiVPN approach, the project is installable via a single bash command
bash <(curl -s https://raw.githubusercontent.com/jameslawler/pivsmp/main/install.sh)
Usage
Run pivsmp
to see all commands provided by the program.
Copy a movie to your ~/.pivsmp/movies
folder. The movie must be inside a folder with the name of the movie. You can use a SFTP program on your main machine to copy the movie to the Pi.
In your Pi console run pivsmp configure
.
-
Select your e-paper display
-
Select the movie to display
-
Choose a frame to start on
-
Choose a delay seconds between frames
-
Start the movie by running
pivsmp start
-
Verify the status using
pivsmp status

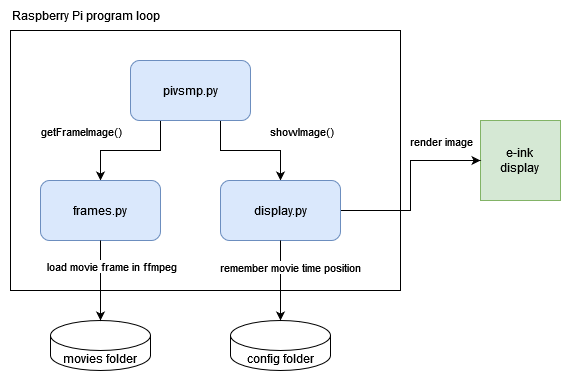

Architecture
Within the project repository, the src
folder contains a cleanly organised set of python scripts to run the program.
The program uses a few 3rd party libraries to make the project work.
questionary
is used to provide a clean command line interface with a question and answer flowffmpeg
is used to extract frames from the video file
Future
This project is in a functioning state and works with a variety of different waveshare drivers to support different e-ink screen sizes. As I no longer have access to a working e-ink display it is unlikely I will be adding further features to the project.
